TSOC_NEOLED : LED Driver Embedded Module

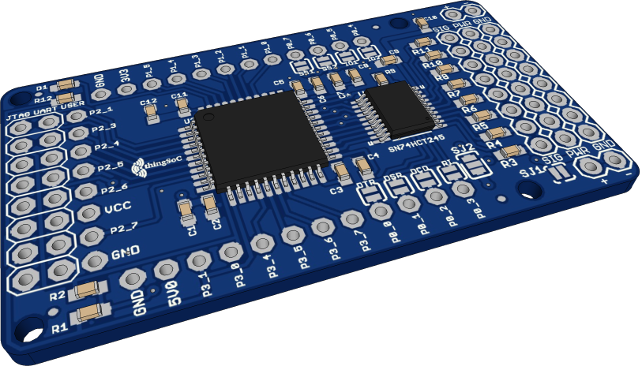

The TSOC_NEOLED is a PSoC4 (Programmable System on Chip) based board with integrated WS2812 (a.k.a Adafruit NeoPixel) programmable LED driver, in an Embedded Module format for the new thingSoC, Internet of Things open standard.

TSOC_NEOLED - LED Driver Embedded Module :

The TSOC_NEOLED connects any thingSoC (or Mikrobus) module to strings of programmable color LEDs. To the "Host" the TSOC_NEOLED appears to be a static memory of 2048 bytes, either I2C bus access (default), or SPI bus access for higher reads/write performance. Each color LED uses four (4) bytes of the memory as a 32 bit (eight bits each Green, Red, Blue, White/Yellow) word. The memory is organized as eight(8) strings of sixty-four(64) LEDs per string, by default. Other geometries can be programmed as well.

TSOC_NEOLED Model

Example Applications :

An example of a portable color LED application, attached to our tandem bicycle for a Portland parade ride.

Light the Ride

TSOC_NEOLED

TSOC_NEOLED Model

Tweet about TSOC_NEOLED

TSOC_NEOLED Repository

TSOC_NEOLED Github
TSOC_NEOLED Wiki
TSOC_NEOLED Issues

TSOC_NEOLED Downloads

TSOC_NEOLED ZIPball
TSOC_NEOLED TARball

TSOC_NEOLED Images

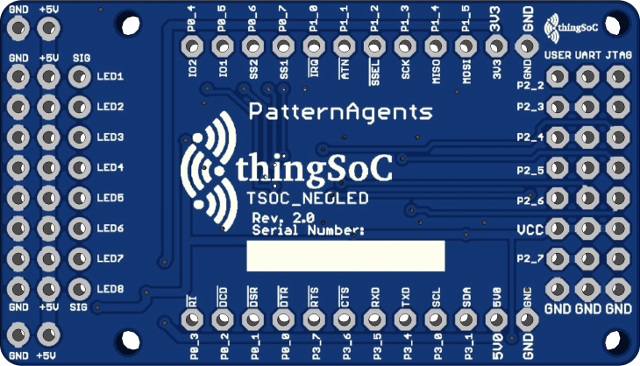

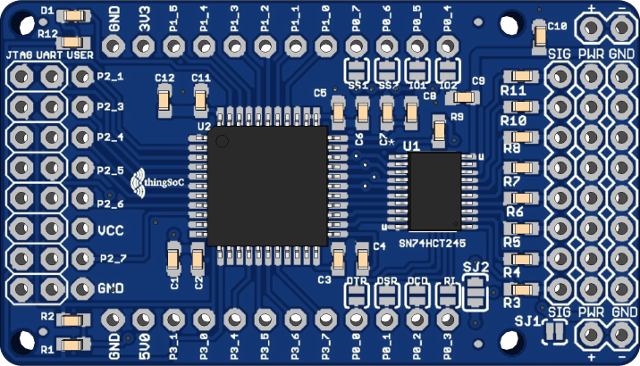

TSOC_NEOLED Top View
TSOC_NEOLED Bottom View

TSOC_NEOLED Licensing

Creative Commons License
The TSOC_NEOLED Project by PatternAgents, LLC is available and licensed under a Creative Commons Attribution-ShareAlike 4.0 International License
