TSOC_GROVEY_I2CHUB : I2C Hub/Switch

TSOC_GROVEY_I2CHUB is a four(4) port I2C Hub/Switch board, an Embedded Module for thingSoC. The TSOC_GROVEY_I2CHUB allows you to connect thingSoC, Mikrobus, and/or Grove System Modules all at the same time, with any processor module. This gives you maximum flexiblity for sensor and actuator selection, and reuse. The TSOC_GROVEY_I2CHUB can operate at either 3.3V or 5V, and can also level translate 3.3V processor I2C bus to 5V peripherals when needed.

The thingSoC "Grovey Series" were designed as "Everyday Electronics", a no-frills, low cost, approach to modular embedded product design. thingSoC boards are similar in size to most break-out-boards (BOBs), but feature a standardized stacking pinout, as well as an I2C metadata store (EEPROM) to indicate what peripherals are installed.

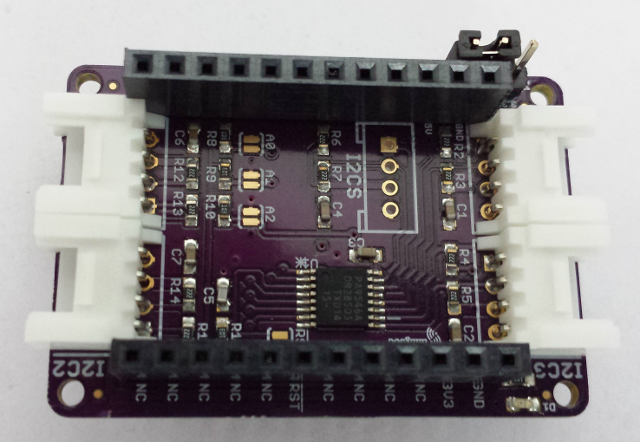

TSOC_GROVEY_I2CHUB - Embedded Module :

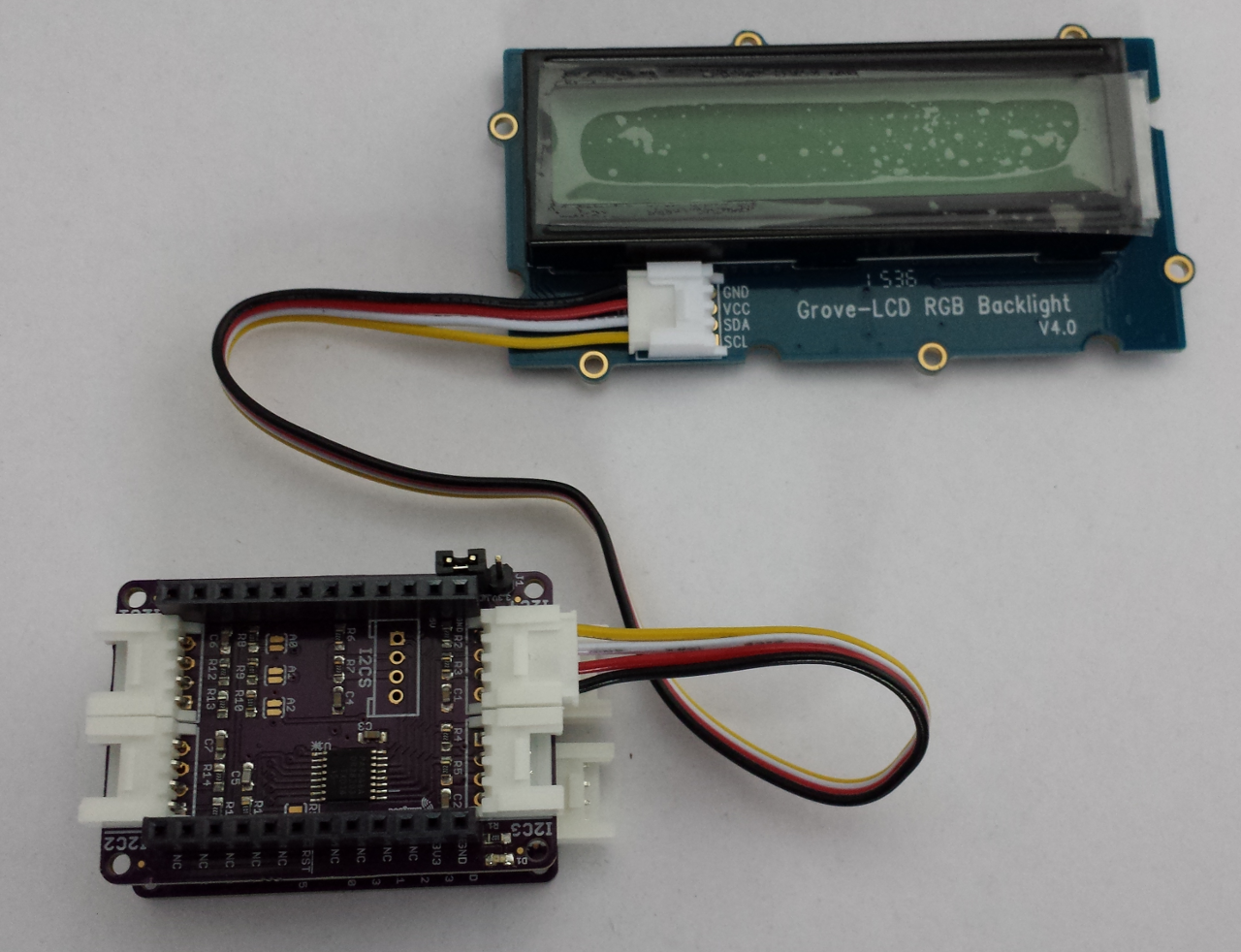

The TSOC_GROVEY_I2CHUB can be configured as either a 3.3 Volt or 5.0 Volt I2C Master.

TSOC_GROVEY_I2CHUB

Example Applications :

Example Sensor Applications :


TSOC_GROVEY_I2CHUB

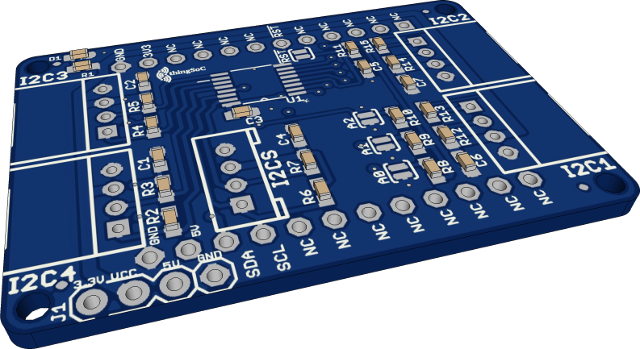

TSOC_GROVEY_I2CHUB Model

Project Status :

  • 11/01/2016 : Rev. 2.0 model and layout completed.

TSOC_GROVEY_I2CHUB

TSOC_GROVEY_I2CHUB Model

Tweet about TSOC_GROVEY_I2CHUB

TSOC_GROVEY_I2CHUB Repository

TSOC_GROVEY_I2CHUB Github
TSOC_GROVEY_I2CHUB Wiki
TSOC_GROVEY_I2CHUB Issues

TSOC_GROVEY_I2CHUB Downloads

TSOC_GROVEY_I2CHUB ZIPball
TSOC_GROVEY_I2CHUB TARball

TSOC_GROVEY_I2CHUB Images

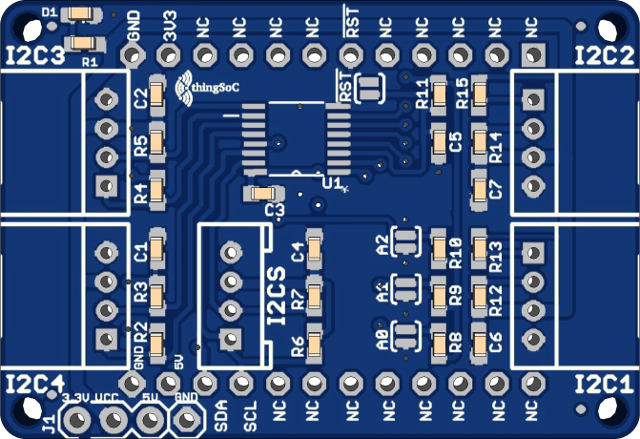

TSOC_GROVEY_I2CHUB Top View
TSOC_GROVEY_I2CHUB Bottom View

TSOC_GROVEY_I2CHUB Licensing

Creative Commons License
The TSOC_GROVEY_I2CHUB Project by PatternAgents, LLC is available and licensed under a Creative Commons Attribution-ShareAlike 4.0 International License
