TSOC-ESP8266 : Wi-Fi Internet of Things Module

TSOC-ESP8266 includes an 802.11 b/g/n Wi-Fi module, operating as a client and/or an Access Point, along with an GPIO Expander to provide an additional 16 Input/Output pins for the thingSoC Socket, and an RGB LED for USER status, with additonal LEDS for Battery Charger Status and USB Status. The TSOC-ESP8266 accepts any thingSoC or Mikrobus module, to provide Wi-Fi to almost anything as a bridge, including RS-232, RS-485, GSM, GPS, BLTE, motor control, analog sensors, and much more.

TSOC-ESP8266 - USB based Programmable System-on-Chip Features :

TSOC-ESP8266 Prototype

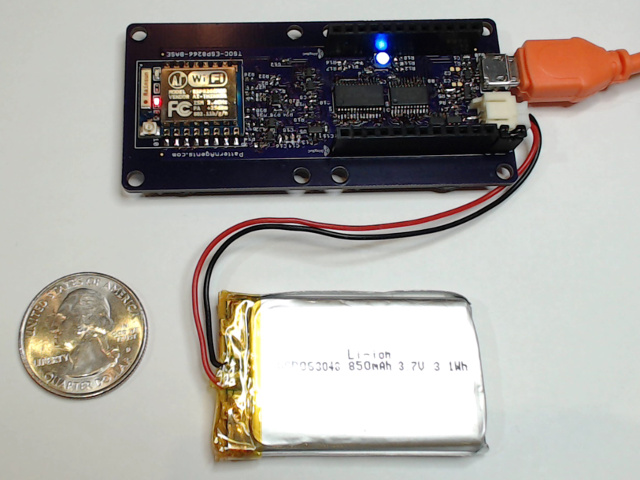

TSOC-ESP8266 with Battery

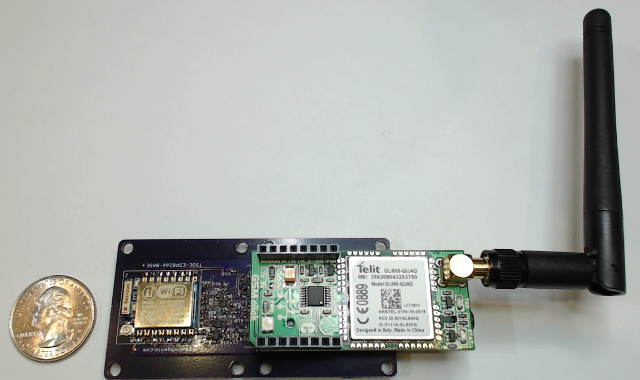

TSOC-ESP8266 with GSM Cell Phone

Project Status

  • 01/10/2016 : First Prototypes Completed (Rev 5.0)
  • 01/15/2016 : Functional Testing Completed, first Arduino Board file tested


TSOC-ESP8266 Model

Tweet about TSOC-ESP8266

TSOC-ESP8266 Repository

TSOC-ESP8266 Github
TSOC-ESP8266 Wiki
TSOC-ESP8266 Issues

TSOC-ESP8266 Downloads

TSOC-ESP8266 ZIPball
TSOC-ESP8266 TARball

TSOC-ESP8266 Images

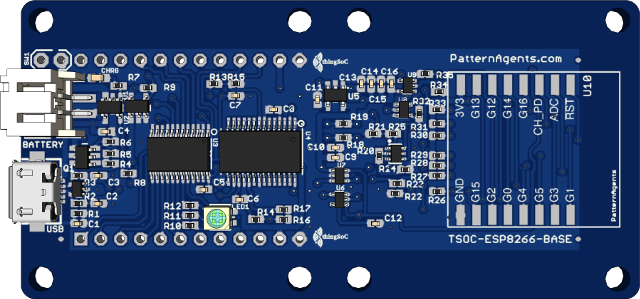

TSOC-ESP8266 Top View

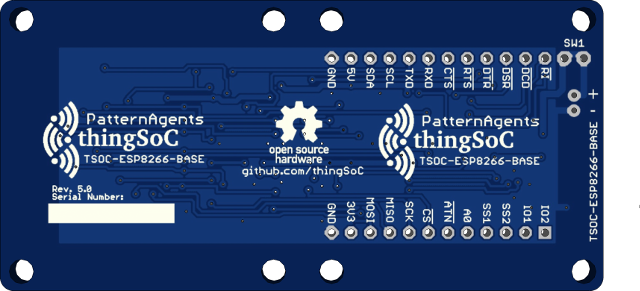

TSOC-ESP8266 Bottom View

TSOC-ESP8266 Licensing

Creative Commons License
The TSOC-ESP8266 Project by PatternAgents, LLC is available and licensed under a Creative Commons Attribution-ShareAlike 4.0 International License
