TinySoc - USB based Programmable System-on-Chip

TinySoc is a simple USB based Programmable System-on-Chip that you can either plug into a breadboard, or solder wires directly on to the board for embedded applications. PatternAgents TinySoc gives you several analog and digital channels that you can program.

TinySoc - USB based Programmable System-on-Chip Features :

  • 2 Channel analog audio mixer
  • 2 Channel analog audio filter
  • USB to UART converter
  • USB to I2C converter
  • USB to SPI converter
  • USB to JTAG programmer
  • USB data acquisition
  • USB powered (5.0 volts)

TinySoc

TinySoc Model

Tweet about TinySoc

TinySoc Repository

TinySoc Github
TinySoc Wiki
TinySoc Issues

TinySoc Downloads

TinySoc ZIPball
TinySoc TARball

TinySoc Images

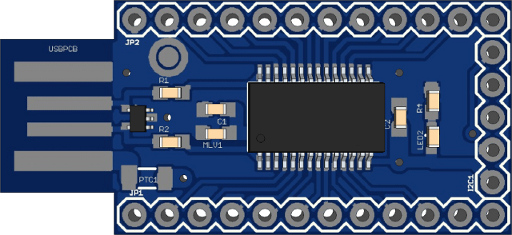

TinySoc Top View

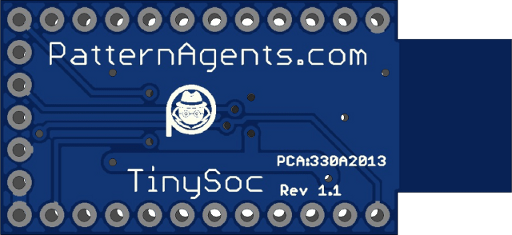

TinySoc Bottom View

TinySoc Licensing

Creative Commons License
The TinySoc Project by PatternAgents, LLC is available and licensed under a Creative Commons Attribution-ShareAlike 4.0 International License
